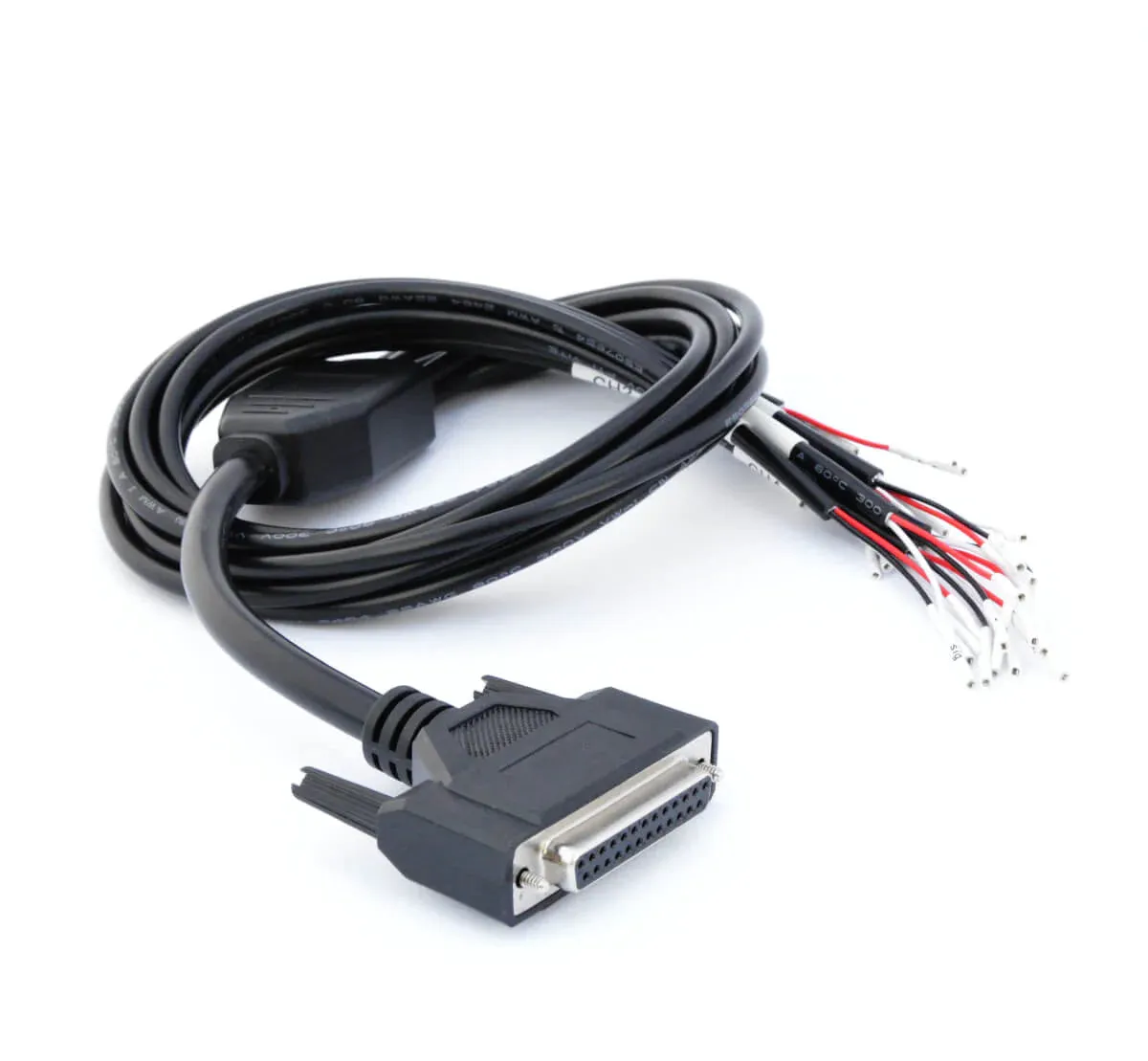

The DB25 input sensor adapter cable connects up to 8 analog/digital/pulse sensors to the CANmod.input module with minimal effort. This cable simplifies the wiring harness.
The adapter cable provides label-stickers on each of the 8 channel cablesand each of the three open wires of each cable; labels denote the positive excitation signal, the ground reference and the signal.
Suited for temporary test installations, it can also be modified for more permanent field tests.
Pinout Information:
Channel |
Function |
DB25 (Female)
|
|---|---|---|
| 1 | - Sig |
24 12 25 |
| 2 | - Sig |
10 23 11 |
| 3 | - Sig |
21 9 22 |
| 4 | - Sig |
7 20 8 |
| 5 | - Sig |
18 6 19 |
| 6 | - Sig |
4 17 5 |
| 7 | - Sig |
15 3 16 |
| 8 | - Sig |
1 14 2 |
